422 Series

     Video Mirrors, Video Scan Reversers, Video Image Rotators
DVI-D, HDMI, HD-SDI, TVI/AHD, VGA (Component) Hi-Definition
or NTSC/PAL Standard Definition


Swap Left-Right, Flip Top-Bottom, or Rotate 180°




Description

Available for Progressive and Interlaced Formats up to 1080 P60:
DVI-D
HDMI (using DVI adapter)
VGA
TVI (DVI Output)
AHD (DVI Output)
HD-SDI (DVI Output)
NTSC/PAL Standard Definition


Applications
Correct Reversed Teleprompter Text
Simulate a Rear View Mirror
Compensate for Ceiling Mounted Cameras
Reverse Endoscopic or Laparoscopic Images
Correct Reversed Images from Video Inspection Systems
Correct Image Reversal caused by Film Camera Adapter Lenses
Correct Optical Reversal
Correct Telescope Image Reversa
Dental Camera System
Flip upside down video display or monitor
Correct upside down or backwards video image

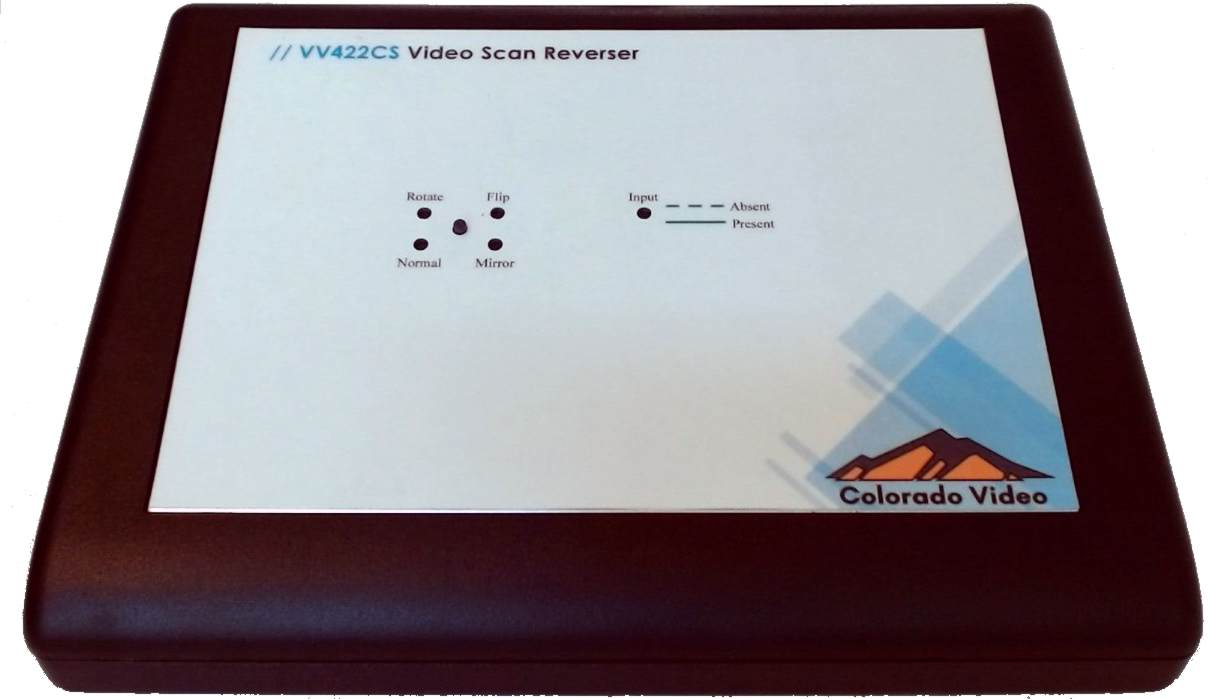

Colorado Video's High Definition and Standard Definition Video Scan Reversers electronically reverse (left to right), flip (top to bottom), and/or rotate 180° the video image or picture from a VGA, HD-SDI, DVI, HDMI (with adapter) high definition or NTSC/PAL standard definition video source so as to create a mirroring, flipped, or rotated effect. Video image reversal, correction or rotation occurs in real-time with roughly a single frame of processing delay.

By Mirroring or flipping a video image, the user can correct for ceiling mounted cameras, or for mirroring optics as in a teleprompter, telescope, laporoscope, or borescope. Power input requirement is 5 VDC at at less than 1 Amp. A UL listed AC adapter is included.

Functionality Synonyms:
Electronic Video Mirror
Video Scan Reverser
Flip Video Image
Video Rotator
Video Image Reverser
Specifications

Standard Definition Units:

VV422CS, VV422C
(NTSC & PAL)
Owner's Manual:
VV422CS.pdf
Input/Output Signal:
NTSC or PAL Composite Video (Output will be same signal as Input)
Input/Output Connector:
BNC Female
Functions:
Swaps Left & Right, Top & Bottom, or Both (180° Rotation)
Controls :
Mode: Normal/Mirror/Flip/Rotate 180°
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Normal Mode
Mirror Mode
Flip Mode
Rotate 180° Mode
Model:
VV422CS: NTSC or PAL Composite Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
VV422C: NTSC or PAL Composite Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

VD422CS, VD422C (NTSC & PAL to DVI)
Owner's Manual:
VD422CS.pdf
Input Signal:
NTSC or PAL Composite Video
Input Connector:
BNC Female
Output Signal:
DVI-D, 480i60 or 576i50
Output Connector:
DVI-I Female
Functions:
Swaps Left & Right, Top & Bottom, or Both (180° Rotation)
Converts NTSC/PAL Composite Input to DVI-D Output
Controls :
Mode: Normal/Mirror/Flip/Rotate 180°
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Normal Mode
Mirror Mode
Flip Mode
Rotate 180° Mode
Model:
VD422CS: NTSC/PAL Composite Input & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
VD422C: NTSC/PAL Composite Input & DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

High Definition Units:

TD422CS, TD422C
(TVI/AHD to DVI)
Owner's Manual:
TD422CS.pdf
Input Signal:
TVI or AHD Hi-Def Composite Analog
Input Connector:
BNC Female
Output Signal:
DVI-D
Output Connector:
DVI-I Female
Functions:
Swaps Left & Right, Top & Bottom, or Both (180° Rotation)
Converts TVI or AHD Input to DVI-D Output
Controls :
Mode: Normal/Mirror/Flip/Rotate 180°
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Normal Mode
Mirror Mode
Flip Mode
Rotate 180° Mode
Model:
TD422CS: TVI or AHD Input  & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
TD422C: TVI or AHD Input & DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

DD422CS, DD422C
(DVI/HDMI)
Owner's Manual:
Input/Output Signal:
DVI-D
Input/Output Connector:
DVI-I Female
Functions:
Swaps Left & Right, Top & Bottom, or Both (180° Rotation)
Controls :
Mode: Normal/Mirror/Flip/Rotate 180°
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Normal Mode
Mirror Mode
Flip Mode
Rotate 180° Mode
Model:
DD422CS: DVI-D Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
DD422C: DVI-D Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

HD422CS, HD422C
(HD-SDI to DVI)
Owner's Manual:
HD422CS.pdf
Input Signal:
SDI, HD-SDI, or 3G-SDI
Input Connector:
BNC Female
Output Signal:
DVI-D
Output Connector:
DVI-I Female
Functions:
Swaps Left & Right, Top & Bottom, or Both (180° Rotation)
Converts HD-SDI Input to DVI-D Output
Controls :
Mode: Normal/Mirror/Flip/Rotate 180°
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Normal Mode
Mirror Mode
Flip Mode
Rotate 180° Mode
Model:
HD422CS: HD-SDI Input & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
HD422C: HD-SDI Input & DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

CC422CS, CC422C
(VGA)
Owner's Manual:
Input/Output Signal:
RGBHV Analog (VGA)
Input/Output Connector:
15-Pin Female DE-15
Functions:
Swaps Left & Right, Top & Bottom, or Both (180° Rotation)
Controls :
Mode: Normal/Mirror/Flip/Rotate 180°
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Normal Mode
Mirror Mode
Flip Mode
Rotate 180° Mode
Model:
CC422CS: VGA or Component Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
CC422C:  VGA or Component Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

Online Ordering and Pricing
Model
Description
Price
Add to Cart
Option-RM
Rackmount installed on any Scan Reverser with Aluminum Chassis
$75.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any Video Mirror or Scan Reverser
$55.00

All prices F.O.B. Boulder, Colorado.
