624 Series
Video Circle Generator
DVI-D, HDMI, VGA (Component) Hi-Definition
or NTSC/PAL Standard Definition

Superimpose Circles and Cross Hairs on
Your Video Image


Description

Available for Progressive and Interlaced Formats up to 1080 P60:
DVI-D
HDMI (using DVI adapter)
VGA
TVI (DVI Output)
AHD (DVI Output)
HD-SDI (DVI Output)
NTSC/PAL Standard Definition


Features
Superimpose up to Two Circles and a Crosshair Simultaneously (624D only)
Adjustable Size for Each or All Objects
Eight Colors Individually or Collectively Selectable for Each Object
Adjustable Line Width for Each or All Objects
Adjustable Line Shadowing for Each or All Objects
Adjustable Line Intensity for Each or All Objects
Adjustable Position for All Objects
Objects Always Concentric

The 624 Series High Definition Video Circle and Crosshair Overlay Generators allow you to overlay a video circle and crosshair pattern and provides a highly stable means to superimpose an adjustable video circle and cross hair or cross line pattern onto your video image.  This functionality allows for inspection of circular objects, to gauge roundness and concentricity.
Additionally, the 624D Series, can overlay two concentric video circles centered on a crosshair.

Pattern size and position are user controllable. The crosshair or crossline is always positioned at the center of the circle(s). Each object can be individually turned on or off. Circles and crosslines can be set to White, Black, Red, Green, Blue, Cyan, Magenta, Yellow, or Off. The objects' lines can be shadowed to improve their visibility against similarly colored picture content. Outline width (thickness) and intensity are adjustable.
Examples of possible pattern combinations
(624, 624D)
Examples of possible pattern combinations
(624D Only)


For additional features, consider these units:
If you need a line generator with tiltable vertical lines, consider: High Definition Video Tilted Line Generator - 623 Series
If you need a variety of patterns, consider: High Definition Video Marker Circle, Rectangle, Crosshair Overlay Generators - 625 Series

Functionality Synonyms:

Video Circle Generator
Video Concentric Circle Generator

Specifications

Standard Definition Units:

VV624CS, VV624C VV624DS, VV624D
(NTSC & PAL)
Owner's Manual:
VV624CS.pdf
VV624C.pdf
VV624DS.pdf
VV624D.pdf
Input/Output Signal:
NTSC or PAL Composite Video (CVBS) (Output will be same signal as Input)
Input/Output Connector:
BNC Female
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Model:
VV624CS: NTSC or PAL Composite Input & Output
Functions: Superimposes a single circle and/or cross hair on real-time standard definition video
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Controls: (Button) Toggle Cross Hair On/Off, Hold to Set Cross Hair Size with H-Position Knob
  (Button) Toggle Circle On/Off, Hold to Set Circle Diameter with H-Position Knob
  (Button) Hold to Select Color with H-Position Knob or Intensity with V-Position Knob
  (Button) Hold to Set Line Width with H-Position Knob or Shadow Intensity with V-Position Knob
  (Multi-Function Knob) H-Position, Crosshair Size, Circle Size, Color Select, Set Intensity
  (Multi-Function Knob) V-Position, Set Line Shadow, Set Line Width
Model:
VV624C: NTSC or PAL Composite Input & Output
Functions: Superimposes a single circle and/or cross hair on real-time standard definition video
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC
Controls: (Button) Toggle Cross Hair On/Off, Hold to Set Cross Hair Size with H-Position Knob
  (Button) Toggle Circle On/Off, Hold to Set Circle Diameter with H-Position Knob
  (Button) Hold to Select Color with H-Position Knob or Intensity with V-Position Knob
  (Button) Hold to Set Line Width with H-Position Knob or Shadow Intensity with V-Position Knob
  (Multi-Function Knob) H-Position, Crosshair Size, Circle Size, Color Select, Set Intensity
  (Multi-Function Knob) V-Position, Set Line Shadow, Set Line Width
Model:
VV624DS: NTSC or PAL Composite Input & Output
Functions: Superimposes dual circles and/or cross hair on real-time standard definition video
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Controls: (Button) Toggle Cross Hair On/Off, Hold to Set Cross Hair Size with H-Position Knob
  (Button) Toggle Circle 1 On/Off, Hold to Set Circle 1 Diameter with H-Position Knob
  (Button) Toggle Circle 2 On/Off, Hold to Set Circle 2 Diameter with H-Position Knob
  (Button) Hold to Select Color with H-Position Knob or Intensity with V-Position Knob
  (Button) Hold to Set Line Width with H-Position Knob or Shadow Intensity with V-Position Knob
  (Multi-Function Knob) H-Position, Crosshair Size, Circle 1 Size, Circle 2 Size, Color Select, Line Width
  (Multi-Function Knob) V-Position, Set Line Shadow, Set Line Width
Model:
VV624D: NTSC or PAL Composite Input & Output
Functions: Superimposes dual circles and/or cross hair on real-time standard definition video
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC
Controls: (Button) Toggle Cross Hair On/Off, Hold to Set Cross Hair Size with H-Position Knob
  (Button) Toggle Circle 1 On/Off, Hold to Set Circle 1 Diameter with H-Position Knob
  (Button) Toggle Circle 2 On/Off, Hold to Set Circle 2 Diameter with H-Position Knob
  (Button) Hold to Select Color with H-Position Knob or Intensity with V-Position Knob
  (Button) Hold to Set Line Width with H-Position Knob or Shadow Intensity with V-Position Knob
  (Multi-Function Knob) H-Position, Crosshair Size, Circle 1 Size, Circle 2 Size, Color Select, Line Width
  (Multi-Function Knob) V-Position, Set Line Shadow, Set Line Width
VD624CS, VD624C VD624DS, VD624D (NTSC/PAL to DVI)
Owner's Manual:
VD624CS.pdf
VD624C.pdf
VD624DS.pdf
VD624D.pdf
Input Signal:
NTSC or PAL Composite Video (CVBS)
Input Connector:
BNC Female
Output Signal:
DVI-D, 480i60 or 576i50
Output Connector:
DVI-I Female
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Model:
VD624CS: NTSC/PAL Composite Input & DVI-D Output
Functions: Superimposes a single circle and/or cross hair on real-time standard definition video
                Converts NTSC/PAL Composite Input to DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Controls: (Button) Toggle Cross Hair On/Off, Hold to Set Cross Hair Size with H-Position Knob
  (Button) Toggle Circle On/Off, Hold to Set Circle Diameter with H-Position Knob
  (Button) Hold to Select Color with H-Position Knob or Intensity with V-Position Knob
  (Button) Hold to Set Line Width with H-Position Knob or Shadow Intensity with V-Position Knob
  (Multi-Function Knob) H-Position, Crosshair Size, Circle Size, Color Select, Set Intensity
  (Multi-Function Knob) V-Position, Set Line Shadow, Set Line Width
Model:
VD624C: NTSC/PAL Composite Input & DVI-D Output
Functions: Superimposes a single circle and/or cross hair on real-time standard definition video
                Converts NTSC/PAL Composite Input to DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC
Controls: (Button) Toggle Cross Hair On/Off, Hold to Set Cross Hair Size with H-Position Knob
  (Button) Toggle Circle On/Off, Hold to Set Circle Diameter with H-Position Knob
  (Button) Hold to Select Color with H-Position Knob or Intensity with V-Position Knob
  (Button) Hold to Set Line Width with H-Position Knob or Shadow Intensity with V-Position Knob
  (Multi-Function Knob) H-Position, Crosshair Size, Circle Size, Color Select, Set Intensity
  (Multi-Function Knob) V-Position, Set Line Shadow, Set Line Width
Model:
VD624DS: NTSC/PAL Composite Input & DVI-D Output
Functions: Superimposes dual circles and/or cross hair on real-time standard definition video
                Converts NTSC/PAL Composite Input to DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Controls: (Button) Toggle Cross Hair On/Off, Hold to Set Cross Hair Size with H-Position Knob
  (Button) Toggle Circle 1 On/Off, Hold to Set Circle 1 Diameter with H-Position Knob
  (Button) Toggle Circle 2 On/Off, Hold to Set Circle 2 Diameter with H-Position Knob
  (Button) Hold to Select Color with H-Position Knob or Intensity with V-Position Knob
  (Button) Hold to Set Line Width with H-Position Knob or Shadow Intensity with V-Position Knob
  (Multi-Function Knob) H-Position, Crosshair Size, Circle 1 Size, Circle 2 Size, Color Select, Line Width
  (Multi-Function Knob) V-Position, Set Line Shadow, Set Line Width
Model:
VD624D: NTSC/PAL Composite Input & DVI-D Output
Functions: Superimposes dual circles and/or cross hair on real-time standard definition video
                Converts NTSC/PAL Composite Input to DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC
Controls: (Button) Toggle Cross Hair On/Off, Hold to Set Cross Hair Size with H-Position Knob
  (Button) Toggle Circle 1 On/Off, Hold to Set Circle 1 Diameter with H-Position Knob
  (Button) Toggle Circle 2 On/Off, Hold to Set Circle 2 Diameter with H-Position Knob
  (Button) Hold to Select Color with H-Position Knob or Intensity with V-Position Knob
  (Button) Hold to Set Line Width with H-Position Knob or Shadow Intensity with V-Position Knob
  (Multi-Function Knob) H-Position, Crosshair Size, Circle 1 Size, Circle 2 Size, Color Select, Line Width
  (Multi-Function Knob) V-Position, Set Line Shadow, Set Line Width

High Definition Units:

TD624CS, TD624C, TD624DS, TD624D
(TVI/AHD to DVI/HDMI)
Owner's Manual:
TD624CS.pdf
TD624C.pdf
TD624DS.pdf
TD624D.pdf
Input Signal:
TVI, CVI, or AHD Hi-Def Composite Analog
Input Connector:
BNC Female
Output Signal:
DVI-D
Output Connector:
DVI-I Female
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Model:
TD624CS: TVI/AHD Input, DVI/HDMI Output
Functions: Superimposes a single circle and/or cross hair on real-time standard definition video
                Converts TVI, CVI, or AHD Input to DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Controls: (Button) Toggle Cross Hair On/Off, Hold to Set Cross Hair Size with H-Position Knob
  (Button) Toggle Circle On/Off, Hold to Set Circle Diameter with H-Position Knob
  (Button) Hold to Select Color with H-Position Knob or Intensity with V-Position Knob
  (Button) Hold to Set Line Width with H-Position Knob or Shadow Intensity with V-Position Knob
  (Multi-Function Knob) H-Position, Crosshair Size, Circle Size, Color Select, Set Intensity
  (Multi-Function Knob) V-Position, Set Line Shadow, Set Line Width
Model:
TD624C: TVI/AHD Input, DVI/HDMI Output
Functions: Superimposes a single circle and/or cross hair on real-time standard definition video
                Converts TVI, CVI, or AHD Input to DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC
Controls: (Button) Toggle Cross Hair On/Off, Hold to Set Cross Hair Size with H-Position Knob
  (Button) Toggle Circle On/Off, Hold to Set Circle Diameter with H-Position Knob
  (Button) Hold to Select Color with H-Position Knob or Intensity with V-Position Knob
  (Button) Hold to Set Line Width with H-Position Knob or Shadow Intensity with V-Position Knob
  (Multi-Function Knob) H-Position, Crosshair Size, Circle Size, Color Select, Set Intensity
  (Multi-Function Knob) V-Position, Set Line Shadow, Set Line Width
Model:
TD624DS: TVI/AHD Input, DVI/HDMI Output
Functions: Superimposes dual circles and/or cross hair on real-time standard definition video
                Converts TVI, CVI, or AHD Input to DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Controls: (Button) Toggle Cross Hair On/Off, Hold to Set Cross Hair Size with H-Position Knob
  (Button) Toggle Circle 1 On/Off, Hold to Set Circle 1 Diameter with H-Position Knob
  (Button) Toggle Circle 2 On/Off, Hold to Set Circle 2 Diameter with H-Position Knob
  (Button) Hold to Select Color with H-Position Knob or Intensity with V-Position Knob
  (Button) Hold to Set Line Width with H-Position Knob or Shadow Intensity with V-Position Knob
  (Multi-Function Knob) H-Position, Crosshair Size, Circle 1 Size, Circle 2 Size, Color Select, Line Width
  (Multi-Function Knob) V-Position, Set Line Shadow, Set Line Width
Model:
TD624D: TVI/AHD Input, DVI/HDMI Output
Functions: Superimposes dual circles and/or cross hair on real-time standard definition video
                Converts TVI, CVI, or AHD Input to DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC
Controls: (Button) Toggle Cross Hair On/Off, Hold to Set Cross Hair Size with H-Position Knob
  (Button) Toggle Circle 1 On/Off, Hold to Set Circle 1 Diameter with H-Position Knob
  (Button) Toggle Circle 2 On/Off, Hold to Set Circle 2 Diameter with H-Position Knob
  (Button) Hold to Select Color with H-Position Knob or Intensity with V-Position Knob
  (Button) Hold to Set Line Width with H-Position Knob or Shadow Intensity with V-Position Knob
  (Multi-Function Knob) H-Position, Crosshair Size, Circle 1 Size, Circle 2 Size, Color Select, Line Width
  (Multi-Function Knob) V-Position, Set Line Shadow, Set Line Width

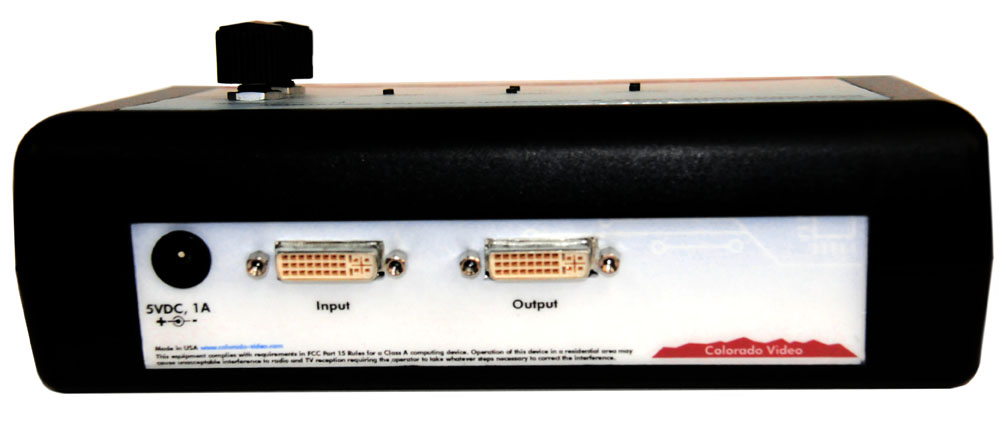

DD624CS, DD624C, DD624DS, DD624D
(DVI/HDMI)
Owner's Manual:
DD624CS.pdf
DD624C.pdf
DD624DS.pdf
DD624D.pdf
Input/Output Signal:
DVI-D
Input/Output Connector:
DVI-I Female
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Model:
DD624CS: DVI-D Input & Output
Functions: Superimposes a single circle and/or cross hair on real-time standard definition video
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Controls: (Button) Toggle Cross Hair On/Off, Hold to Set Cross Hair Size with H-Position Knob
  (Button) Toggle Circle On/Off, Hold to Set Circle Diameter with H-Position Knob
  (Button) Hold to Select Color with H-Position Knob or Intensity with V-Position Knob
  (Button) Hold to Set Line Width with H-Position Knob or Shadow Intensity with V-Position Knob
  (Multi-Function Knob) H-Position, Crosshair Size, Circle Size, Color Select, Set Intensity
  (Multi-Function Knob) V-Position, Set Line Shadow, Set Line Width
Model:
DD624C: DVI-D Input & Output
Functions: Superimposes a single circle and/or cross hair on real-time standard definition video
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC
Controls: (Button) Toggle Cross Hair On/Off, Hold to Set Cross Hair Size with H-Position Knob
  (Button) Toggle Circle On/Off, Hold to Set Circle Diameter with H-Position Knob
  (Button) Hold to Select Color with H-Position Knob or Intensity with V-Position Knob
  (Button) Hold to Set Line Width with H-Position Knob or Shadow Intensity with V-Position Knob
  (Multi-Function Knob) H-Position, Crosshair Size, Circle Size, Color Select, Set Intensity
  (Multi-Function Knob) V-Position, Set Line Shadow, Set Line Width
Model:

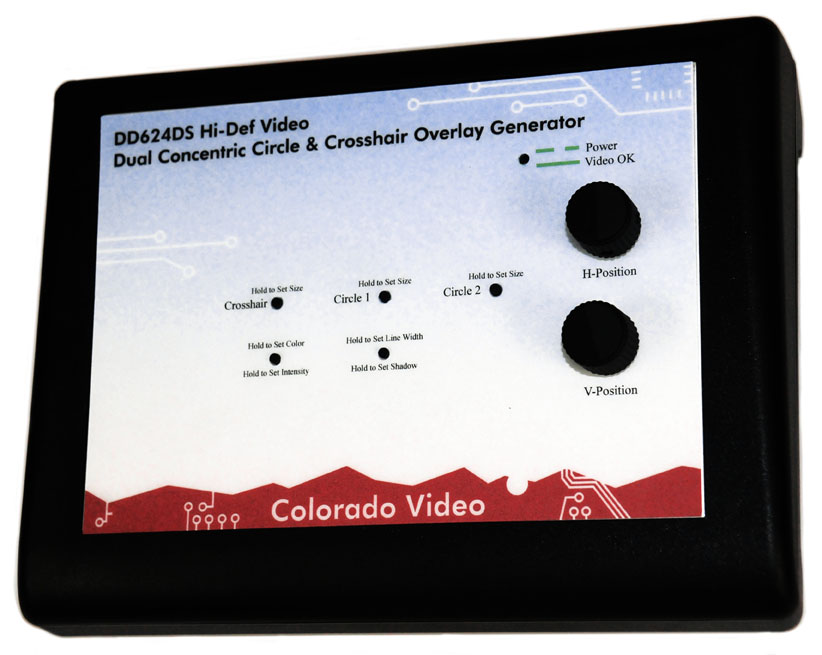

DD624DS: DVI-D Input & Output
Functions: Superimposes dual circles and/or cross hair on real-time standard definition video
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Controls: (Button) Toggle Cross Hair On/Off, Hold to Set Cross Hair Size with H-Position Knob
  (Button) Toggle Circle 1 On/Off, Hold to Set Circle 1 Diameter with H-Position Knob
  (Button) Toggle Circle 2 On/Off, Hold to Set Circle 2 Diameter with H-Position Knob
  (Button) Hold to Select Color with H-Position Knob or Intensity with V-Position Knob
  (Button) Hold to Set Line Width with H-Position Knob or Shadow Intensity with V-Position Knob
  (Multi-Function Knob) H-Position, Crosshair Size, Circle 1 Size, Circle 2 Size, Color Select, Line Width
  (Multi-Function Knob) V-Position, Set Line Shadow, Set Line Width
Model:
DD624D: DVI-D Input & Output
Functions: Superimposes dual circles and/or cross hair on real-time standard definition video
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC
Controls: (Button) Toggle Cross Hair On/Off, Hold to Set Cross Hair Size with H-Position Knob
  (Button) Toggle Circle 1 On/Off, Hold to Set Circle 1 Diameter with H-Position Knob
  (Button) Toggle Circle 2 On/Off, Hold to Set Circle 2 Diameter with H-Position Knob
  (Button) Hold to Select Color with H-Position Knob or Intensity with V-Position Knob
  (Button) Hold to Set Line Width with H-Position Knob or Shadow Intensity with V-Position Knob
  (Multi-Function Knob) H-Position, Crosshair Size, Circle 1 Size, Circle 2 Size, Color Select, Line Width
  (Multi-Function Knob) V-Position, Set Line Shadow, Set Line Width

HD624CS, HD624C, HD624DS, HD624D
(HD-SDI to DVI/HDMI)
Owner's Manual:
HD624CS.pdf
HD624C.pdf
HD624DS.pdf
HD624D.pdf
Input Signal:
HD-SDI; 720p50/60, 1080i50/60, 1080p24/25/30/50/60
Input Connector:
BNC Female
Output Signal:
DVI-D
Output Connector:
DVI-I Female
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Model:
HD624CS: HD-SDI Input, DVI/HDMI Output
Functions: Superimposes a single circle and/or cross hair on real-time standard definition video
                Converts HD-SDI Input to DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Controls: (Button) Toggle Cross Hair On/Off, Hold to Set Cross Hair Size with H-Position Knob
  (Button) Toggle Circle On/Off, Hold to Set Circle Diameter with H-Position Knob
  (Button) Hold to Select Color with H-Position Knob or Intensity with V-Position Knob
  (Button) Hold to Set Line Width with H-Position Knob or Shadow Intensity with V-Position Knob
  (Multi-Function Knob) H-Position, Crosshair Size, Circle Size, Color Select, Set Intensity
  (Multi-Function Knob) V-Position, Set Line Shadow, Set Line Width
Model:
HD624C: HD-SDI Input, DVI/HDMI Output
Functions: Superimposes a single circle and/or cross hair on real-time standard definition video
                Converts HD-SDI Input to DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC
Controls: (Button) Toggle Cross Hair On/Off, Hold to Set Cross Hair Size with H-Position Knob
  (Button) Toggle Circle On/Off, Hold to Set Circle Diameter with H-Position Knob
  (Button) Hold to Select Color with H-Position Knob or Intensity with V-Position Knob
  (Button) Hold to Set Line Width with H-Position Knob or Shadow Intensity with V-Position Knob
  (Multi-Function Knob) H-Position, Crosshair Size, Circle Size, Color Select, Set Intensity
  (Multi-Function Knob) V-Position, Set Line Shadow, Set Line Width
Model:
HD624DS: HD-SDI Input, DVI/HDMI Output
Functions: Superimposes dual circles and/or cross hair on real-time standard definition video
                Converts HD-SDI Input to DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Controls: (Button) Toggle Cross Hair On/Off, Hold to Set Cross Hair Size with H-Position Knob
  (Button) Toggle Circle 1 On/Off, Hold to Set Circle 1 Diameter with H-Position Knob
  (Button) Toggle Circle 2 On/Off, Hold to Set Circle 2 Diameter with H-Position Knob
  (Button) Hold to Select Color with H-Position Knob or Intensity with V-Position Knob
  (Button) Hold to Set Line Width with H-Position Knob or Shadow Intensity with V-Position Knob
  (Multi-Function Knob) H-Position, Crosshair Size, Circle 1 Size, Circle 2 Size, Color Select, Line Width
  (Multi-Function Knob) V-Position, Set Line Shadow, Set Line Width
Model:
HD624D: HD-SDI Input, DVI/HDMI Output
Functions: Superimposes dual circles and/or cross hair on real-time standard definition video
                Converts HD-SDI Input to DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC
Controls: (Button) Toggle Cross Hair On/Off, Hold to Set Cross Hair Size with H-Position Knob
  (Button) Toggle Circle 1 On/Off, Hold to Set Circle 1 Diameter with H-Position Knob
  (Button) Toggle Circle 2 On/Off, Hold to Set Circle 2 Diameter with H-Position Knob
  (Button) Hold to Select Color with H-Position Knob or Intensity with V-Position Knob
  (Button) Hold to Set Line Width with H-Position Knob or Shadow Intensity with V-Position Knob
  (Multi-Function Knob) H-Position, Crosshair Size, Circle 1 Size, Circle 2 Size, Color Select, Line Width
  (Multi-Function Knob) V-Position, Set Line Shadow, Set Line Width

CC624CS, CC624C, CC624DS, CC624D
(VGA)
Owner's Manual:
CC624CS.pdf
CC624C.pdf
CC624DS.pdf
CC624D.pdf
Input/Output Signal:
RGBHV Analog (VGA)
Input/Output Connector:
15-Pin Female DE-15
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Model:
CC624CS: VGA Input and Output
Functions: Superimposes a single circle and/or cross hair on real-time standard definition video
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Controls: (Button) Toggle Cross Hair On/Off, Hold to Set Cross Hair Size with H-Position Knob
  (Button) Toggle Circle On/Off, Hold to Set Circle Diameter with H-Position Knob
  (Button) Hold to Select Color with H-Position Knob or Intensity with V-Position Knob
  (Button) Hold to Set Line Width with H-Position Knob or Shadow Intensity with V-Position Knob
  (Multi-Function Knob) H-Position, Crosshair Size, Circle Size, Color Select, Set Intensity
  (Multi-Function Knob) V-Position, Set Line Shadow, Set Line Width
Model:
CC624C: VGA Input and Output
Functions: Superimposes a single circle and/or cross hair on real-time standard definition video
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC
Controls: (Button) Toggle Cross Hair On/Off, Hold to Set Cross Hair Size with H-Position Knob
  (Button) Toggle Circle On/Off, Hold to Set Circle Diameter with H-Position Knob
  (Button) Hold to Select Color with H-Position Knob or Intensity with V-Position Knob
  (Button) Hold to Set Line Width with H-Position Knob or Shadow Intensity with V-Position Knob
  (Multi-Function Knob) H-Position, Crosshair Size, Circle Size, Color Select, Set Intensity
  (Multi-Function Knob) V-Position, Set Line Shadow, Set Line Width
Model:
CC624DS: VGA Input and Output
Functions: Superimposes dual circles and/or cross hair on real-time standard definition video
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Controls: (Button) Toggle Cross Hair On/Off, Hold to Set Cross Hair Size with H-Position Knob
  (Button) Toggle Circle 1 On/Off, Hold to Set Circle 1 Diameter with H-Position Knob
  (Button) Toggle Circle 2 On/Off, Hold to Set Circle 2 Diameter with H-Position Knob
  (Button) Hold to Select Color with H-Position Knob or Intensity with V-Position Knob
  (Button) Hold to Set Line Width with H-Position Knob or Shadow Intensity with V-Position Knob
  (Multi-Function Knob) H-Position, Crosshair Size, Circle 1 Size, Circle 2 Size, Color Select, Line Width
  (Multi-Function Knob) V-Position, Set Line Shadow, Set Line Width
Model:
CC624D: VGA Input and Output
Functions: Superimposes dual circles and/or cross hair on real-time standard definition video
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC
Controls: (Button) Toggle Cross Hair On/Off, Hold to Set Cross Hair Size with H-Position Knob
  (Button) Toggle Circle 1 On/Off, Hold to Set Circle 1 Diameter with H-Position Knob
  (Button) Toggle Circle 2 On/Off, Hold to Set Circle 2 Diameter with H-Position Knob
  (Button) Hold to Select Color with H-Position Knob or Intensity with V-Position Knob
  (Button) Hold to Set Line Width with H-Position Knob or Shadow Intensity with V-Position Knob
  (Multi-Function Knob) H-Position, Crosshair Size, Circle 1 Size, Circle 2 Size, Color Select, Line Width
  (Multi-Function Knob) V-Position, Set Line Shadow, Set Line Width

Online Ordering and Pricing

Single Circle and Line
Generators
Model
Description
Price
Add to Cart
Option-RM
Rack Mount for any 624 in aluminum chassis
$75.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any Circle Generator
$45.00

Concentric Circle and Line
Generators
Model
Description
Price
Add to Cart
Option-RM
Rack Mount for any 624 in aluminum chassis
$75.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any Circle Generator
$45.00

Looking for Additional Features?
You may be interested in these similar products:

Standard and High-Definition
Tilted Line Generators
Model
Description
Price
Add to Cart
Option-12
12VDC Power Input (normally 5VDC)
$60.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any Cross Hair or Line Generator
$45.00

High-Definition Pattern Generators
Model
Description
Price
Add to Cart
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any Video Marker
$35.00

All prices F.O.B. Boulder, Colorado.










P.O. Box 952 Longmont, CO 80502 USA    Tel +1-303-530-9580    sales@colorado-video.com
Business Hours: 9AM to 4PM Mountain Time (GMT-7 Winter, GMT-6 Summer), excluding weekends & holidays.
www.colorado-video.com

Copyright 2004-2018   Colorado Video, Inc.
