VC619 Series
Video Cross Hair & Video Cross Line Generator
VGA, SVGA, XGA or SXGA Video

Now Available for High-Definition!

Description

Features

•

Pattern Selectable: White, Black, or Off

•

Adjustable Line Position

•

High Precision Multi-turn Controls

•

Recessed controls make accidental line movement
impossible

•

Recessed push button control for Picture Mode

•

Recessed push button control for Color, Hue, Brightness, & Contrast Adjustment

•

NTSC or PAL Video Input

•

S-Video Input Optional (Composite Standard)

•

Selectable SVGA, XGA, or SXGA PC-Video Output

•

Small ABS Case

•

+5 VDC Power (120 VAC Adapter Included where appropriate)

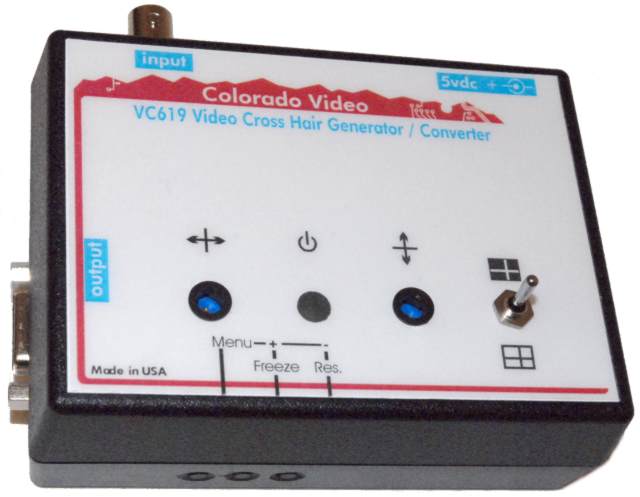

The Model VC619 Video Cross Hair Generator superimposes a crosshair or lines onto a real-time video composite video signal and then converts it to a SVGA, XGA, or SXGA computer pc-video signal suitable for connection to a computer monitor. The user can adjust the position of these lines by means of high precision multiple turn controls.

With a front panel switch, the user can set the lines to White, Black, or Off. A switch to select solid or dashed lines is available as the "M" Option.

Additional push button controls allow adjustment of brightness, contrast, color and hue, and selection of output signal; SVGA 800x600x60p, SVGA 800x600x75p, XGA 1024x768x60p, or SXGA 1280x1024x60p.

Dashed Lines (Option "M")

Select between Solid or segmented lines with the flip of a switch
Option available for all VC619 Series Models

Available Line Combinations

One Horizontal and One Vertical Line

Model VC619

Two Vertical Lines

Model VC619YY

Two Horizontal Lines

Model VC619XX

Two Horizontal and Two Vertical Lines

Model VC619D

Applications

Automated Component Pick & Place Precision Targeting
Cross hairs or lines superimposed on video systems used for setting up automated electronic component pick and place machines allow an operator to precisely train the machine as to where components belong on a PC board.

Precision Laser Marking & Laser Welding
An adjustable video cross hair or line equipped video camera and monitor system can indicate where a powerful laser is going to hit before it's pulsed.

Silicon Wafer Precision Cutting and Sawing
A video picture with crosslines overlaid can facilitate proper alignment of a silicon wafer or other material before it's cut.

Precision Highway Line Striping
Equipped with carefully mounted cameras, a video cross hair or line generator, and a video monitor in the cab, a highway line striping truck easily paints highway stripes precisely where they belong.

Accurate Docking of Blimps and Other Large Vessels
Some blimps and other large vessels are equipped with video cameras and a cross hair or line generator to help pilots accurately guide these vehicles for mooring.

Multiple Pass Printing Process Alignment
Cross hair or crossline equipped video systems can help assure proper alignment for multiple pass printing processes.

Specifications

All Units: 619, 619YY, 619XX, 619D (NTSC & PAL)

Owner's Manual:

619: Manual-619.pdf
619YY: Manual-619YY.pdf
619XX: Manual-619XX.pdf
619D: Manual-619D.pdf

Size:

4.4"W x 3.25"L x 1.5"H

Mounting:

Free standing desktop

Power Connector:

5.5 x 2.1 mm coaxial power jack, center-pin positive

Power Input:

5 VDC Regulated (120 VAC Adaptor included where appropriate)

Chassis:

Black ABS

Video Input/Output:

1Vp-p nominal, composite, 75 ohm, loop-thru input, (s-video optional)

PC-Video Output:

SVGA 800x600x60p, SVGA 800x600x75p, XGA 1024x768x60p, or SXGA 1280x1024x60p selectable

Options:

PAL Video Compatibility, S-Video, Segmented Lines

Input Connector:

BNC (4-pin mini-DIN for s-video)

Output Connector:

Indicator: DE-15 Female

Indicator:

Power LED

Model:

VC619 Video Cross Hair
Controls: Display (switch): Sets lines to off, black, or white
Position (2) (provided for each line)
Menu (push button): Selects Brightness, Contrast, Color, or Hue for Adjustment
PicMode or + (push button): Selects Picture Mode or Increases Value for Selected Menu Item
Resolution or - (push button): Selects Output Resolution or Decreases Value for Selected Menu Item

Model:

VC619XX Video Cross Hair
Controls: Display (switch): Sets lines to off, black, or white
Position (2) (provided for each line)
Menu (push button): Selects Brightness, Contrast, Color, or Hue for Adjustment
PicMode or + (push button): Selects Picture Mode or Increases Value for Selected Menu Item
Resolution or - (push button): Selects Output Resolution or Decreases Value for Selected Menu Item

Model:

VC619YY Video Cross Hair
Controls: Display (switch): Sets lines to off, black, or white
Position (2) (provided for each line)
Menu (push button): Selects Brightness, Contrast, Color, or Hue for Adjustment
PicMode or + (push button): Selects Picture Mode or Increases Value for Selected Menu Item
Resolution or - (push button): Selects Output Resolution or Decreases Value for Selected Menu Item

Model:

VC619D Video Cross Hair
Controls: Display (switch): Sets lines to off, black, or white
Position (4) (provided for each line)
Menu (push button): Selects Brightness, Contrast, Color, or Hue for Adjustment
PicMode or + (push button): Selects Picture Mode or Increases Value for Selected Menu Item
Resolution or - (push button): Selects Output Resolution or Decreases Value for Selected Menu Item
