626 Series

Video Reticle Overlay Generator
DVI-D, HDMI, HD-SDI, TVI/AHD, VGA (Component) Hi-Definition
or NTSC/PAL Standard Definition


Superimpose a Reticle with Cross Hairs, Tick Marks or Grid, and Circles




Description

Available for Progressive and Interlaced Formats up to 1080 P60:
DVI-D
HDMI (using DVI adapter)
VGA
TVI (DVI Output)
AHD (DVI Output)
HD-SDI (DVI Output)
NTSC/PAL Standard Definition


Unbeatable Video Compatibility
Interlaced or Progressive Scan Video
Hundreds of Resolution Formats
Includes 1080p, 1080i, 720p, UXGA, 24, 25, 30, and 60 FPS
16 x 9, 4 x 3, and Other Picture Aspect Ratios
Square or Rectangular Pixel Formats

Superimpose Up to Four Objects
Cross Hair
One or Two Concentric Circles
Tick Marks or Grid

Adjust all Objects Independently for:
Color: Black, White, Red, Orange, Yellow, Green, Cyan, Blue, or Magenta
Line Width
Line Intensity/Transparancy
Line Shadowing
Position (always concentric)

Adjust Cross Hair For:
X and Y Axis Length, Independently or Concurrently

Adjust Circles For:
One or Two
Diameter

Adjust Tick Marks or Grid For:
Spacing along X and Y Axis, Independently or Concurrently
Spacing along X and Y Axis, Independently or Concurrently

On-Screen Menu
Accesses All Functions
Adjustable Menu Size and Position
Friendly Icons and Terminology Easily Navigated

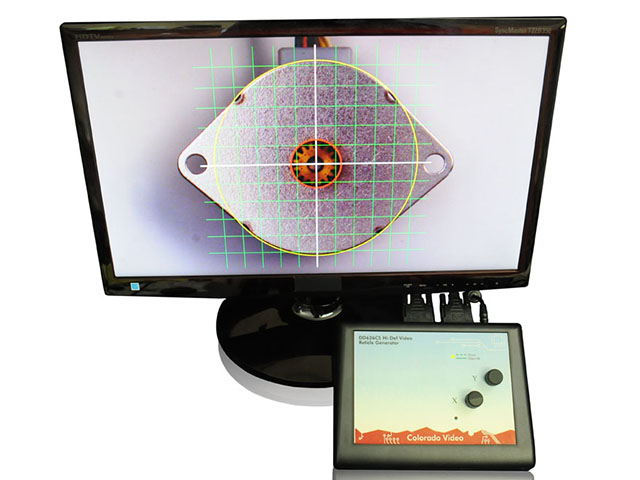

Tick Mark or Grid spacing is independently adjustable for each axis.

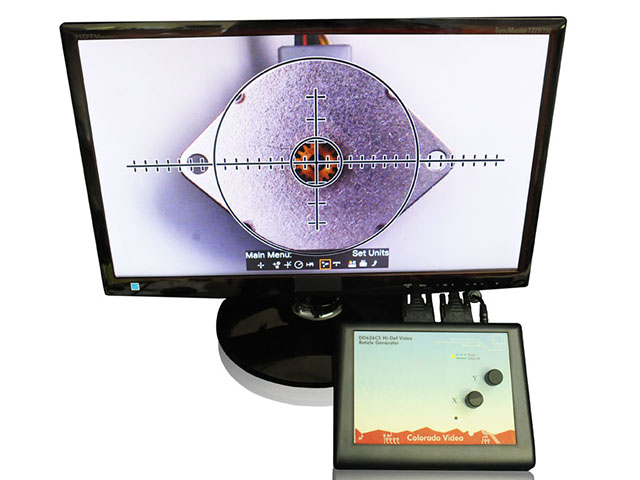

Thick Black Lines with White Shadow. Onscreen Menu at bottom.

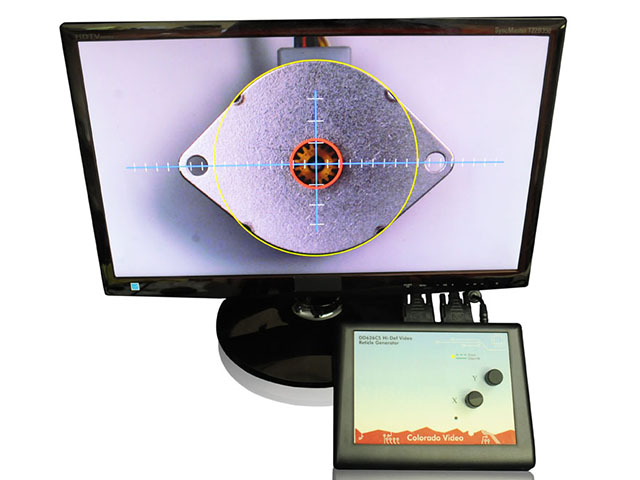

Circles, Lines, Grids, and Tick Marks can have differing characteristics.

Functionality Synonyms:

Video Line Generator
Video Cross Hair Generator
Video Cross Line Generator
Video Crossline Generator
Video Crosshair Generator
Video Pattern Generator
Video Tick Mark Generator
Video XY Indicator
Video XY Positioner
Video Marker

Specifications

Standard Definition Units:

VV626CS, VV626C
(NTSC & PAL)
Owner's Manual:
VV626CS.pdf
Input/Output Signal:
NTSC or PAL Composite Video (Output will be same signal as Input)
Input/Output Connector:
BNC Female
Functions:
Superimposes a Reticle Pattern over a Real-Time Video Picture

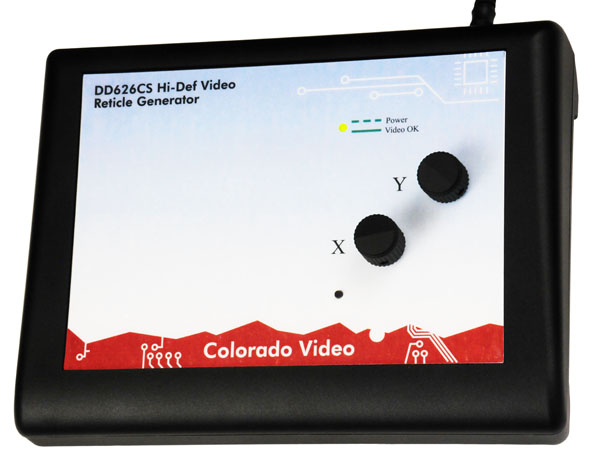

Controls :
Button (Selects Menu, Enters Selections)
Knob X (Upper Multi-Function Knob)
Knob Y (Lower Multi-Function Knob)
Indicators:
Power (Flashing) Video OK (Steady)
Model:
VV626CS: NTSC or PAL Composite Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
VV626C: NTSC or PAL Composite Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

VD626CS, VD626C (NTSC & PAL to DVI)
Owner's Manual:
VD626CS.pdf
Input Signal:
NTSC or PAL Composite Video
Input Connector:
BNC Female
Output Signal:
DVI-D, 480i60 or 576i50
Output Connector:
DVI-I Female
Functions:
Superimposes a Reticle Pattern over a Real-Time Video Picture
Converts NTSC/PAL Composite Input to DVI-D Output
Controls :
Button (Selects Menu, Enters Selections)
Knob X (Upper Multi-Function Knob)
Knob Y (Lower Multi-Function Knob)
Indicators:
Power (Flashing) Video OK (Steady)
Model:
VD626CS: NTSC/PAL Composite Input & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
VD626C: NTSC/PAL Composite Input & DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

High Definition Units:

TD626CS, TD626C
(TVI/AHD to DVI)
Owner's Manual:
TD626CS.pdf
Input Signal:
TVI or AHD Hi-Def Composite Analog
Input Connector:
BNC Female
Output Signal:
DVI-D
Output Connector:
DVI-I Female
Functions:
Superimposes a Reticle Pattern over a Real-Time Video Picture
Converts TVI or AHD Input to DVI-D Output
Controls :
Button (Selects Menu, Enters Selections)
Knob X (Upper Multi-Function Knob)
Knob Y (Lower Multi-Function Knob)
Indicators:
Power (Flashing) Video OK (Steady)
Model:
TD626CS: TVI or AHD Input  & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
TD626C: TVI or AHD Input & DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

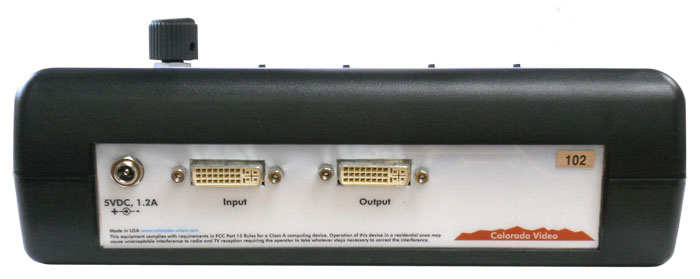

DD626CS, DD626C
(DVI/HDMI)
Owner's Manual:
Manual-DD626CS.pdf
Input/Output Signal:
DVI-D
Input/Output Connector:
DVI-I Female
Functions:
Superimposes a Reticle Pattern over a Real-Time Video Picture
Controls :
Button (Selects Menu, Enters Selections)
Knob X (Upper Multi-Function Knob)
Knob Y (Lower Multi-Function Knob)
Indicators:
Power (Flashing) Video OK (Steady)
Model:
DD626CS: DVI-D Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
DD626C: DVI-D Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

HD626CS, HD626C
(HD-SDI to DVI)
Owner's Manual:
HD626CS.pdf
Input Signal:
SDI, HD-SDI, or 3G-SDI
Input Connector:
BNC Female
Output Signal:
DVI-D
Output Connector:
DVI-I Female
Functions:
Superimposes a Reticle Pattern over a Real-Time Video Picture
Converts HD-SDI Input to DVI-D Output
Controls :
Button (Selects Menu, Enters Selections)
Knob X (Upper Multi-Function Knob)
Knob Y (Lower Multi-Function Knob)
Indicators:
Power (Flashing) Video OK (Steady)
Model:
HD626CS: HD-SDI Input & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
HD626C: HD-SDI Input & DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

CC626CS, CC626C
(VGA)
Owner's Manual:
Manual-CC626CS.pdf
Input/Output Signal:
RGBHV Analog (VGA)
Input/Output Connector:
15-Pin Female DE-15
Functions:
Superimposes a Reticle Pattern over a Real-Time Video Picture
Controls :
Button (Selects Menu, Enters Selections)
Knob X (Upper Multi-Function Knob)
Knob Y (Lower Multi-Function Knob)
Indicators:
Power (Flashing) Video OK (Steady)
Model:
CC626CS: VGA or Component Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
CC626C:  VGA or Component Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC


Online Ordering and Pricing
Model
Description
Price
Add to Cart
Option-RM
Rackmount installed on any Reticle Generator with Aluminum Chassis
$75.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any Reticle Overlay Generator
$45.00

Looking for Additional Features?
You may be interested in these similar products:

Standard and High-Definition
Tilted Line Generators
Model
Description
Price
Add to Cart
Option-12
12VDC Power Input (normally 5VDC)
$60.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any Cross Hair or Line Generator
$45.00

High-Definition Pattern Generators
Model
Description
Price
Add to Cart
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any Video Marker
$35.00

All prices F.O.B. Boulder, Colorado.
